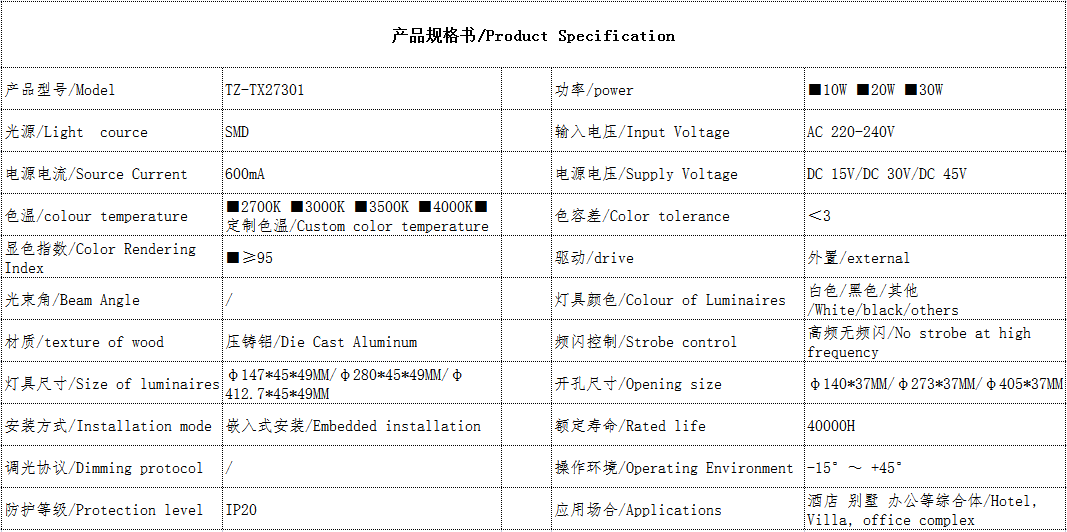

| 产品参数/Product parameters | |
| 产品型号/Model | TZ-TX27301 |
| 光源/Light cource | SMD |
| 电源电流/Source Current | 600mA |
| 色温/colour temperature | ■2700K ■3000K ■3500K ■4000K■定制色温/Custom color temperature |
| 显色指数/Color Rendering Index | ■≥95 |
| 光束角/Beam Angle | / |
| 材质/texture of wood | 压铸铝/Die Cast Aluminum |
| 灯具尺寸/Size of luminaires | φ147*45*49MM/φ280*45*49MM φ412.7*45*49MM |
| 安装方式/Installation mode | 嵌入式安装/Embedded installation |
| 调光协议/Dimming protocol | / |
| 防护等级/Protection level | IP20 |
| 功率/power | ■10W ■20W ■30W |
| 输入电压/Input Voltage | AC 220-240V |
| 电源电压/Supply Voltage | DC 15V/DC 30V/DC 45V |
| 色容差/Color tolerance | ＜3 |
| 驱动/drive | 外置/external |
| 灯具颜色/Colour of Luminaires | 白色/黑色/其他/White/black/others |
| 频闪控制/Strobe control | 高频无频闪/No strobe at high frequency |
| 额定寿命/Rated life | 40000H |
| 操作环境/Operating Environment | -15°～ +45° |
| 应用场合/Applications | 酒店 别墅 办公等综合体/Hotel, Villa, office complex |
| 开孔尺寸/Opening size | φ140*37MM/φ273*37MM φ405*37MM |
